General Information

ADI Part Number

02340-001

Brand Name

Axis Communications

Manufacturer

Axis Communications

Manufacturer Part Number

02340-001

Product Model

P1465-LE

Product Name

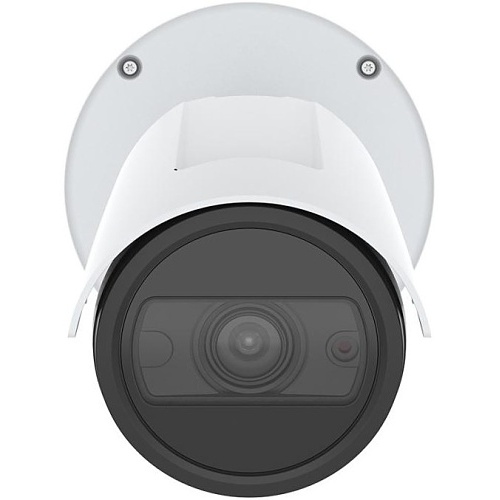

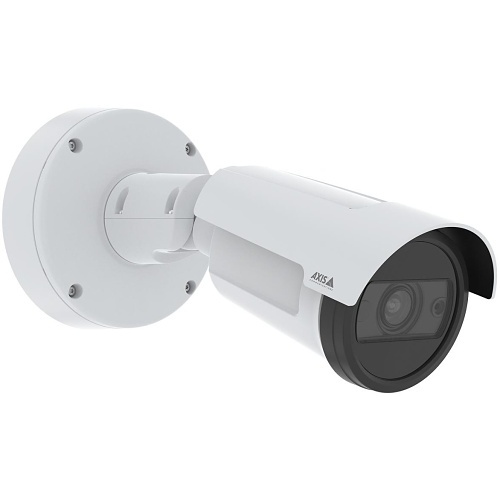

AXIS P1465-LE 29 mm

Product Series

P14

Product Type

Fixed cameras

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

2MP

Field of View

Horizontal, Vertical

HD Recording

Yes

Lens Type

Varifocal

Maximum Aperture

f/1.7

Maximum Frame Rate

60 fps

Minimum Focal Length

10.90 mm

Night Vision

Yes

Night Vision Type

Infrared

Optical Zoom

2.7x

Wide Dynamic Range

Yes

Camera

Night Vision Distance

39.92 m

Certifications

CE Marking

Yes

Ingress Protection Rating

IP66, IP67

NDAA Compliant

Yes

RoHS Compliant

Compliant

TAA Compliant

Yes

Display & Graphics

Color Supported

Colour

Maximum Video Resolution

1920 x 1080

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

100%

Exposure

Longest Shutter Speed

2 Second

Minimum Illumination

0 lux

Shortest Shutter Speed

1/37000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

10.9-29mm

Lens Included

Yes

Maximum Focal Length

29 mm

Physical Characteristics

Color

White

Color Family

White

Durability

Dust Resistant, Impact Resistant, Rain Resistant, Snow Resistant, Vandal Resistant, Weather Resistant

Form Factor

Bullet

Weight (Approximate)

2.65 lb

Power Description

Input Voltage

10V DC, 28V DC

Product Information

Diameter

132 mm

Mount Type

Pole Mount, Wall Mount

Storage

Recording Formats

Full HD

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, ISO 21207 (Method B), NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Environmentally Friendly

Yes

Features

Auto Gain Control, Day/Night, Defog, Password Protection, Privacy Masking, PTZ, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

Package Contents

P1465-LE Network Camera Installation guide
TORX L-keys Terminal block connector Connector guard Cable gaskets AXIS Weather Shield L Owner authentication key

AXIS P1465-LE P14 Series, 2MP Zipstream IP Bullet Camera, 29mm Lens, IR 80M, IP67, White
