General Information

ADI Part Number

311316076

Brand Name

Hikvision

Manufacturer

Hikvision

Manufacturer Part Number

DS-2CD2383G2-IU(2.8mm)

Product Line

Pro Series(EasyIP)

Product Model

DS-2CD2383G2-I(U)

Product Name

8 MP AcuSense Fixed Turret Network Camera

Product Series

EasyIP 2.0 Plus with AcuSense

Product Type

Turret Cameras

weight

600 g

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

8MP

Field of View

horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°

Lens Mount Type

M12

Lens Type

Fixed

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

2.8mm

Night Vision

Yes

Night Vision Type

Infrared

Wide Dynamic Range

Yes

Camera

Night Vision Distance

30 m

Certifications

Ingress Protection Rating

IP67

RoHS Compliant

Compliant

Display & Graphics

Maximum Video Resolution

3840 x 2160

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-30°C

Operating Humidity

95%

Exposure

Longest Shutter Speed

1/3 Second

Shortest Shutter Speed

1/100000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

2.8 mm

Lens Included

Yes

Maximum Focal Length

2.80 mm

Physical Characteristics

Color

White

Durability

Dust Resistant, Water Resistant

Form Factor

Turret

Product Information

Diameter

127.3 mm

Mount Type

Corner Mount, In-ceiling, Junction Box Mount, Pendant Mount, Pole Mount, Vertical Mount, Wall Mount

Storage

Recording Formats

4K

Storage Type

Memory Card

Miscellaneous

Features

AcuSense

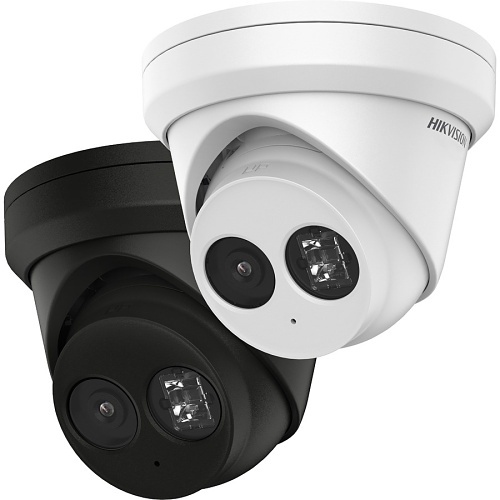

Hikvision DS-2CD2383G2-I Pro Series AcuSense IP67 4K IR 30M IP Turret Camera, 2.8mm Fixed Lens, White
