General Information

ADI Part Number

SRXP4-2V10-EBT-IR

Brand Name

Pelco by Motorola Solutions

Manufacturer

Motorola Solutions, Inc.

Manufacturer Part Number

SRXP4-2V10-EBT-IR

Packaged Quantity

1

Product Line

Sarix Professional

Product Model

SRXP4-2V10-EBT-IR

Product Name

Sarix Professional 4 Camera Series

Product Series

Sarix Pro 4

Product Type

Bullet Camera

weight

1.31 kg

Technical Information

Connectivity Technology

Wired

Effective Camera Resolution

2MP

Field of View

Horizontal, Vertical

Lens Type

Varifocal

Maximum Aperture

f/1.6

Maximum Frame Rate

30 fps

Minimum Focal Length

3.4mm

Night Vision

Yes

Night Vision Type

Colour

Optical Zoom

3x

Video Formats

H.264, H.265, MJPEG

Wide Dynamic Range

Yes

Camera

Image Sensor Type

CMOS

Night Vision Distance

50 m

Certifications

Ingress Protection Rating

IP66, IP67

RoHS Compliant

Compliant

TAA Compliant

No

Display & Graphics

Maximum Video Resolution

1920 x 1080

Number of Sensors

1

Environmental Conditions

Maximum Operating Temperature

60°C

Minimum Operating Temperature

-40°C

Operating Humidity

0.95

Exposure

Longest Shutter Speed

1/7.5 Second

Minimum Illumination

0 lux

Shortest Shutter Speed

1/30000 Second

Interfaces/Ports

Network (RJ-45)

Yes

Lens

Focal Length

3.4-10.5mm

Lens Included

Yes

Maximum Focal Length

10.50 mm

Network & Communication

Remote Management

Yes

Physical Characteristics

Color

Silver

Depth

294 mm

Durability

Impact Resistant, Vandal Resistant, Weather Resistant

Form Factor

Bullet

Height

104 mm

Width

126 mm

Power Description

Input Voltage

12V DC

Product Information

Mount Type

Desktop Mount, Wall Mount

Storage

Storage Type

Memory Card

Warranty

Limited Warranty

5-Year

Miscellaneous

Environmental Certification

BIS, CE, cUL, KC, NOM, RCM, RoHS, UKCA, UL

Environmentally Friendly

Yes

Features

3D Digital Noise Reduction, Anti-flicker, Back Light Compensation (BLC), HTTPS Encryption, Human Detection, Mirror, Noise Reduction, Password Protection, Vehicle Detection, Video Content Analytics, Wide Dynamic Range

Impact Protection Rating

IK10

Indoor/Outdoor

Outdoor

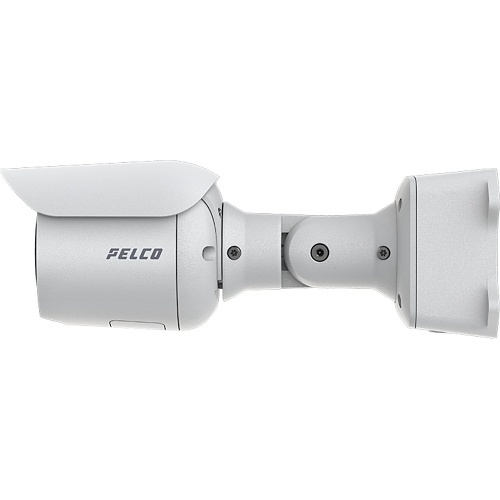

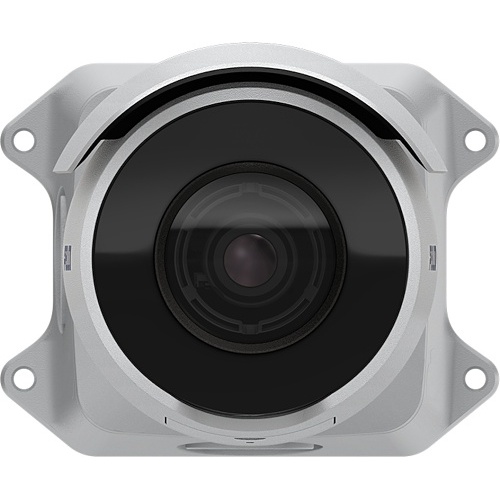

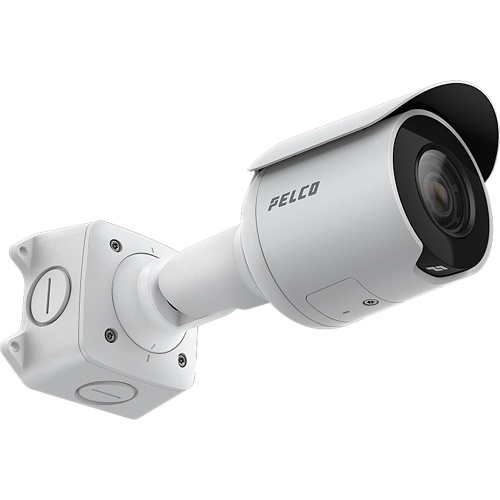

Pelco SRXP4-3V10-EBT-IR Sarix Pro 4 Series, IP67 3MP 3.4-10.5mm Motorised Varifocal Lens, IR 50M IP Bullet Camera
